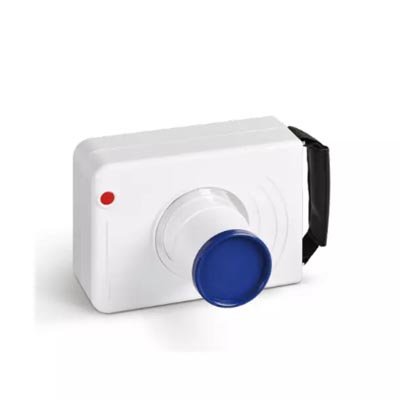

Portable Dental X-ray Unit

Category :

Description

Features

* The device is DC high frequency portable dental x-ray unit, small, light and nearly no radiation.

* There are manual buttons installed on the surface of shell, operate easily. All of the components are installed in the central PC board, insulation vacuum and sealed stereotype protection make its brilliant features.

* The unit mainly suitable for oral pre-treatment diagnosis of internal organization structure and root depth and so on, is indispensable in daily life clinic, especially for dental implant surgery.

* The battery is durability, it can take about five hundred images after full charged, and it can be charged and discharged for one thousand times in its life.

* It can be connected with intra-oral digital x-ray imaging system.

Specifications

Tube voltage 60KV Tube current 2mA
Exposure time 0.2-3.2s Frequency 200KHz
Tube focus 0.4mm×0.4mm Rated power 90W
Battery DC14.8V 6600mAh Output voltage DC16.8V
Charger input voltage AC100V-240V±10% Relative humidity <75%RH
Ambient temperature 5-40℃ Gross weight 4.8kg
Package size 330×310×230(mm) Net weight 2.0kg
