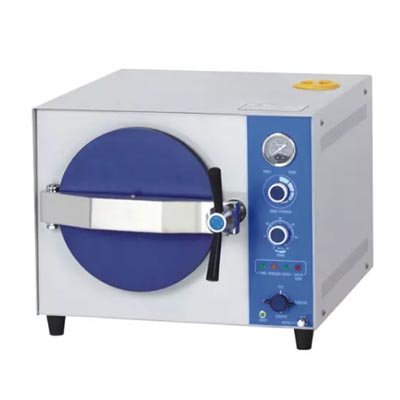

PTS-XB20J Autoclave

Category :

Description

Characteristics:

•       Indicator light indicates working state.

•       For 4~6 minutes rapidly sterilizing.

•       Sterilizing temperature and time can be preset.

•       Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.

•       Over temperature & over pressure auto-protection.

•       Safe protection of water lacking.

•       Exhaust the cool air automatically.

•       With three stainless steel sterilizing plates.

•       The chamber of the sterilizer is made of stainless steel.

•       Automatically shut off with beep reminding after sterilization.



MODEL TECHNICAL DATA PTS-XB20J PTS-XB24J
Sterilizing chamber volume 20L ( φ250×420 mm) 24L ( φ250×520 mm)
Maximum working pressure 0.22Mpa
Maximum working temperature 134°C
Adjustment of temperature 105-134°C
Timer 0-60 min
Chamber temperature equal ≤ ± 1°C
Source power 1.5KW/AC 220V   50Hz (AC110V   60HZ)
Dimension 480×480×384 mm 580×480×384 mm
Package dimension 700×580×500 mm 800×580×500 mm
G. W/N.W 44/40 kg 50/45 kg
